A Better Choice: The Modular Platform
One rotary frame, shared controls, and both labeling methods — reconfigure as packaging changes instead of replacing the machine.
This electronic cam machine serves multi-specification lines at 4,000 to 7,200 bph with fast format changeover. The modular platform keeps the same servo precision, adds self-adhesive labeling on the same frame, and scales to 58,000 bph as the line grows.

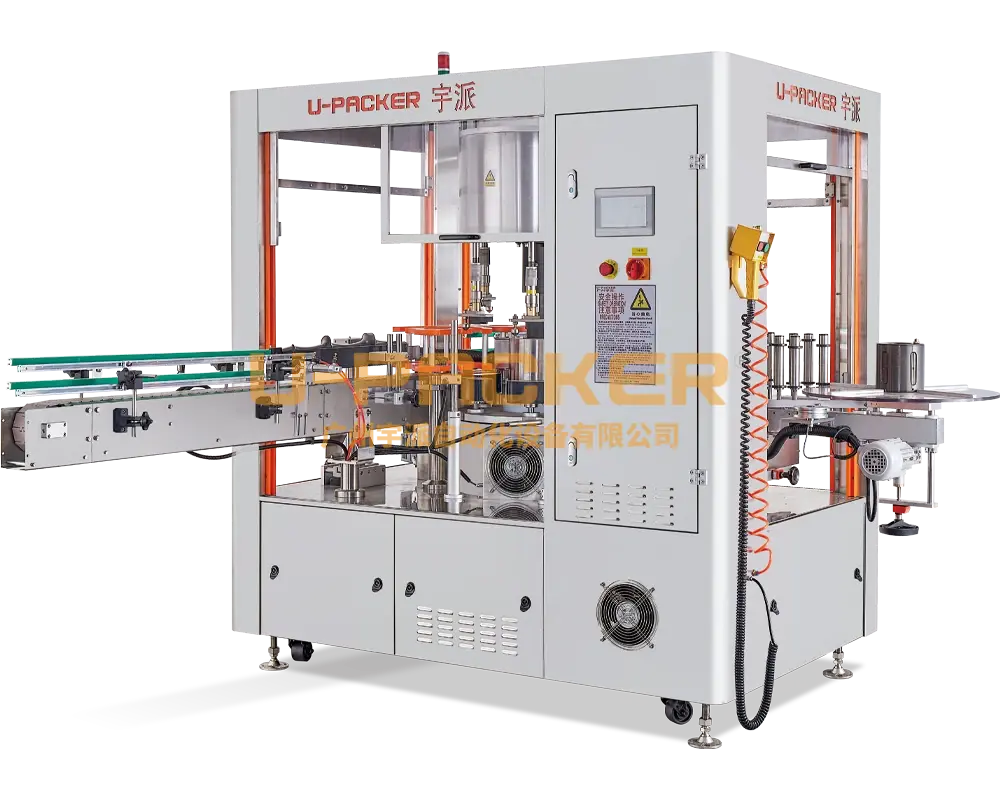

The rotary OPP hot melt glue multi-functional electronic cam labeling machine is an automated labeling machine for wrap-around labeling of plastic and metal square bottles and oval irregular bottles, suitable for multi-specification production in the washing, beverage, mineral water and food industries. It uses U-Packer proprietary electronic cam technology: each station is controlled by an independent servo motor, with a labeling accuracy of ±1mm, and parameter templates allow quick changeovers between specifications.
- Applicable to labeling all kinds of containers with wrap-round labels like OPP film, pearl film, composite film and widely applied to the industries of detergents, beverages, mineral or purified water, foods etc.
- Using U-Packer own research technology to achieve each station is controlled by an independent motor motor, that is, the bottle station speed, rotation angle, etc., is based on the motor speed control to achieve.
- High labeling accuracy due to motor motor control without wear and tear.
- According to different specifications, the rotational speed and rotation angle can be controlled by the program to achieve good labeling effect.
- It is also possible to set up parameter templates to be called directly when changing specifications, which reduces the material cost of changing specifications and reduces the time of changing cam molds, providing production efficiency.
- Fully automatic high speed labeling process, replacing the manual labeling and enhancing the productivity and helping users to strengthen the competitiveness of their products.
- Adopting environment-friendly materials is the packing industry trend, and this machine is built for OPP film labels: for the same printed area, self-adhesive label material typically costs 30–50% more than hot melt labels, so it helps users cut packaging material cost.
- Combined with advanced gluing technology and features of hot melt glue, the labeling machine only sprays glue at both ends of label and attach the label perfectly, this technology can minimize the consumption of glue and save production cost.
- As the applied label is non-shrinkable material, the printed patterns on the label won’t be deformed, staying the packing decoration.
- The labeling machine is applied for non-shrinkable labels, so no shrinking facility is required, saving a lot of energy.
| UHL-0606FD3.0 | 6 per cycle production capacity 4000 to 5500 bottles/hour |
| UHL-0808FD3.0 | 8 per cycle production capacity 5500 to 7200 bottles/hour |
| Power Requirement | three-phase 380V 50Hz 8000W |
| Speed regulation | stepless speed regulation |
| Positioning Mode | Motor positioning |
| Maximum label dispensing speed | 150m/min |
| Labeling accuracy | ±1mm |
| Maximum label width | 130mm |
| Maximum label length | 600mm |
| Maximum outside diameter of label roll | 600mm |
| Label roll core diameter | 152mm |
| Labeling glue | Hot melt adhesive, applied only to both ends of the label |
| Gluing Temperature | 120–160 °C |
| Labeling product type | suitable for plastic, metal and other square bottles or elliptical shaped bottles |
| Label type | OPP Film Label, paper-plastic Composite Label, paper label and so on |
| Machine Weight | 1500kg |
The above parameters are for reference only and are subject to change in kind.

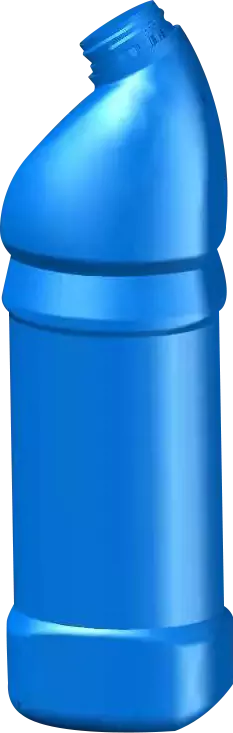

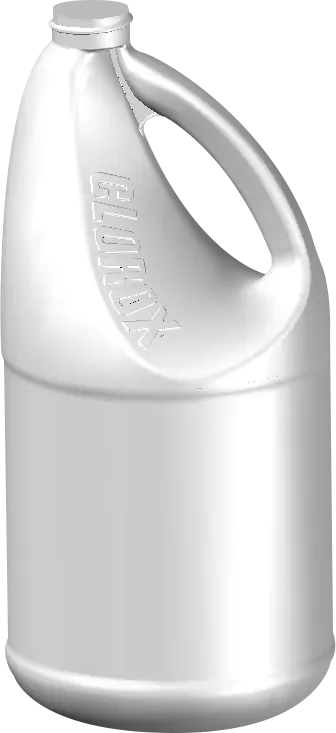

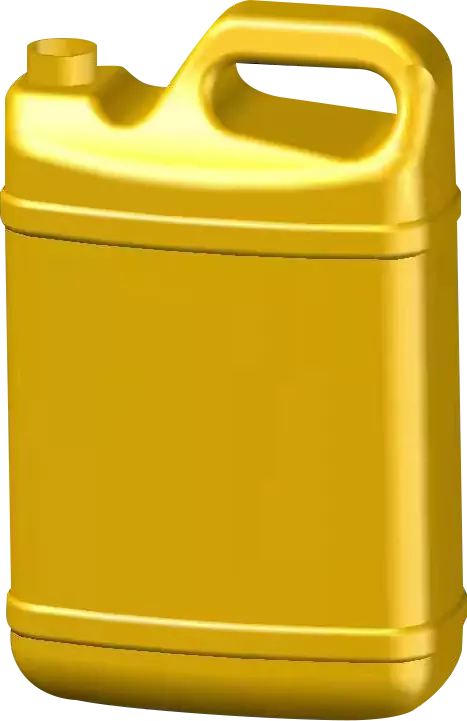

It suits square bottles and oval irregular bottles made of plastic, metal and other materials, and performs hot melt glue wrap-around labeling with roll-fed materials such as OPP film, pearl film and paper-plastic composite labels.
UHL-0606FD3.0 (6 stations, 4,000 to 5,500 bottles per hour) and UHL-0808FD3.0 (8 stations, 5,500 to 7,200 bottles per hour); choose the 8-station model for higher capacity.
The U-Packer proprietary electronic cam lets each station be driven by an independent servo motor controlling speed and angle, so there is no accuracy loss from mechanical cam wear. When changing specifications, parameter templates can be recalled, reducing changeover material cost and shortening changeover time.
It suits industries that frequently change bottle specifications, such as washing, beverage, mineral water and food, especially mixed-line multi-specification production with high changeover efficiency requirements.
Yes. Your actual bottles are part of the order: ship them with your order, plus your labels if you already buy them. Every machine is factory-tested on your own bottles at rated speed before it leaves our Guangzhou workshop — you receive a test video and photo report, you can watch the run, and additional acceptance requirements can be agreed before the test is scheduled.
Pricing is quoted per configuration, starting at ~USD 50,000 and varying with the level of automation and capacity configuration. Share your bottle type and capacity requirements, and U-Packer will provide a specific proposal and quotation.
