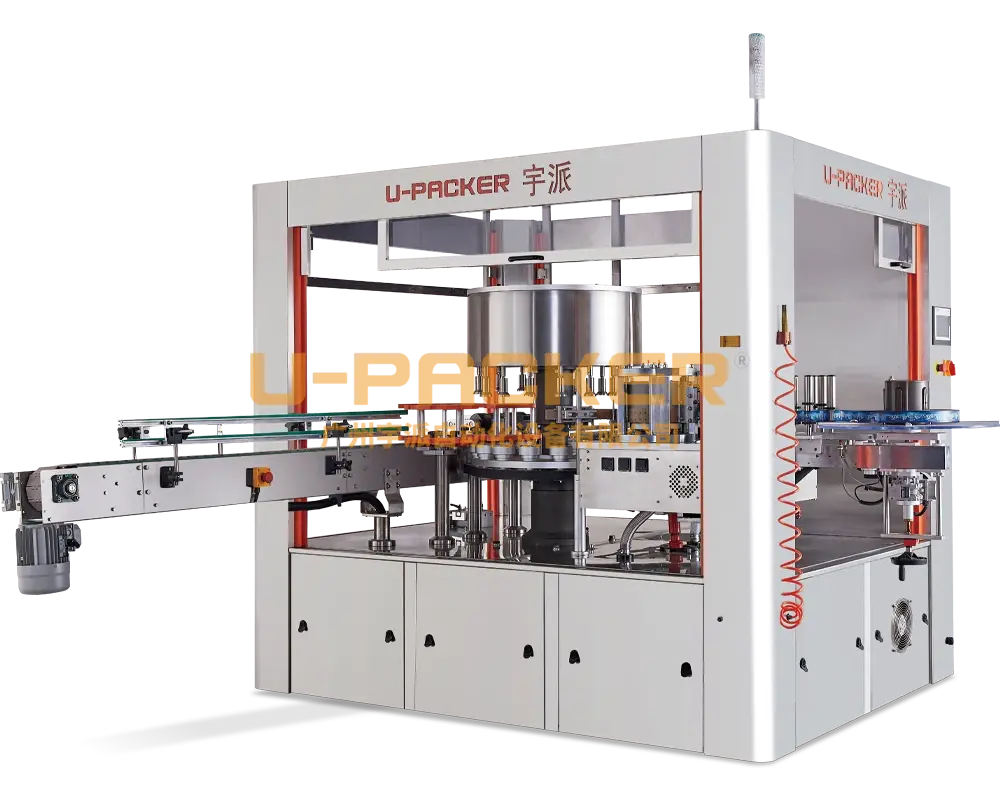

The rotary OPP hot melt labeling machine for round bottles is a fully automatic OPP labeling machine designed for wrap-around labeling of plastic, metal and glass round bottles, used in the beverage, mineral water and food industries. It uses roll-fed labels such as OPP film, pearl film and composite paper, with a labeling accuracy of ±1mm and a production capacity of 6,000 to 36,000 bottles per hour depending on the number of stations. Hot melt glue is applied only to the leading and trailing edges of the label, saving glue and eliminating the heat shrink tunnel.
- Applicable to labeling all kinds of containers with wrap-around labels like OPP film, pearl film, composite film and widely applied to the industries of detergents, beverages, mineral or purified water, foods etc.
- Fully automatic high speed labeling process, replacing the manual labeling and enhancing the productivity and helping users to strengthen the competitiveness of their products.
- Adopting environment-friendly materials is the packing industry trend, the labeling machine is specially used for this kind of materials like OPP film labels, so it can help to save 30% or above packing cost.
- Combined with advanced gluing technology and features of hot melt glue, the labeling machine only sprays glue at both ends of label and attach the label perfectly, this technology can minimize the consumption of glue and save production cost.
- As the applied label is non-shrinkable material, the printed patterns on the label won’t be deformed, staying the packing decoration.
- The labeling machine is applied for non-shrinkable labels, so no shrinking facility is required, saving a lot of energy.
- Upgraded platform available: the modular labeling machine — hot melt applies the same end-only gluing at up to 58,000 bph. Compare modular configurations.
| UHL-0606Y | 6 per cycle production capacity 6000 bottles/hour |
| UHL-1212Y | 12 per cycle production capacity 12000 bottles/hour |
| UHL-1516Y | 16 per cycle production capacity 15000 bottles/hour |
| UHL-1820Y | 20 per cycle production capacity 18000 bottles/hour |
| UHL-2420Y | 20 per cycle production capacity 24000 bottles/hour |
| UHL-3632Y | 32 per cycle production capacity 36000 bottles/hour |
| Power Requirement | three-phase 380V 50Hz 8000W |
| Speed regulation | stepless speed regulation |
| Maximum bid speed | 150m/min |
| Labeling accuracy | ±1mm |
| Maximum width of tag | 130mm |
| Maximum tag length | 600mm |
| Maximum outside diameter of label roll | 600mm |
| Label roll core diameter | 152mm |
| Labeling Gel | Hot Melt adhesive, just in the label at both ends of the glue |
| Gluing Temperature | 120–160 °C |
| Labeling product type | suitable for plastic, metal and glass round bottle |
| Label type | OPP Film Label, paper-plastic Composite Label, paper label and so on |
| Machine Weight | 1500kg |
The above parameters are for reference only and are subject to change in kind.
It suits round bottles made of plastic, metal or glass, and performs wrap-around labeling with roll-fed labels such as OPP film, pearl film and paper-plastic composite labels. It is widely used in the beverage, mineral water, food and daily chemical industries.
Models are divided by number of stations from 6 to 32, corresponding to 6,000 to 36,000 bottles per hour (UHL-0606Y to UHL-3632Y). Choose a multi-station model for higher capacity requirements; U-Packer can help you select based on your bottle dimensions.
Labeling accuracy is ±1mm. The machine uses advanced hot melt glue technology, applying glue only to the two ends of the label to complete wrap-around bonding, which greatly reduces glue consumption compared with full-surface gluing. The labels are non-shrink materials, so no heat shrink tunnel is needed, making it more energy-efficient.
It suits industries that use OPP film wrap-around labels, such as detergents, beverages, mineral water and food, and is especially suitable for high-volume lines pursuing packaging cost optimization.
Pricing is quoted per configuration, starting at ~USD 50,000 and varying with the level of automation and capacity configuration. Share your bottle type and capacity requirements, and U-Packer will provide a specific proposal and quotation.
