The rotary self-adhesive labeling machine is a widely applicable fully automatic labeling machine that applies self-adhesive labels to round, oval, square and irregular containers made of plastic, glass and metal, widely used in the washing, beverage, food and pharmaceutical industries. It is compact and multi-purpose, with a production capacity of 12,000 to 18,000 bottles per hour depending on the station configuration, delivering high speed and high accuracy.
- Suitable for labeling of self-adhesive labels such as washing, beverage, mineral water, food, etc.
- Suitable for labeling plastic, glass and metal products of different shapes such as round, oval, square, etc.
- The automatic high-speed labeling production process replaces the inefficient manual labeling method, improves production efficiency, and improves the market competitiveness of products.
- High speed, high precision, which can meet the needs of different customers.
- Simple instructions， Compact structure , wide range of applications with multiple functions and adaptability.
| UHL-1212 | 12 per cycle production capacity 12000 bottles/hour |
| UHL-1516 | 16 per cycle production capacity 15000 bottles/hour |
| UHL-1820 | 20 per cycle production capacity 18000 bottles/hour |
| Power Requirement | three-phase 380V 50Hz 8000W |
| Speed regulation | stepless speed regulation |
| Maximum bid speed | 150m/min |
| Labeling accuracy | ±1mm |
| Maximum width of tag | 130mm |
| Maximum tag length | 600mm |
| Maximum outside diameter of label roll | 600mm |
| Label roll core diameter | 152mm |
| Labeling type | self adhesive with backing paper |
| Gluing Temperature | 120–160 °C |
| Labeling product type | Suitable for plastic, metal and glass and other materials of the bottle |
| Machine Weight | 2500kg |
The above parameters are for reference only and are subject to change in kind.

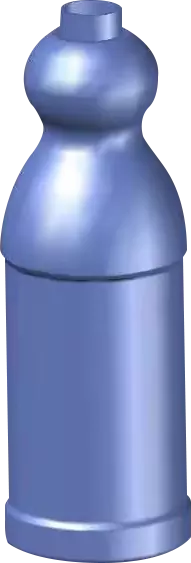

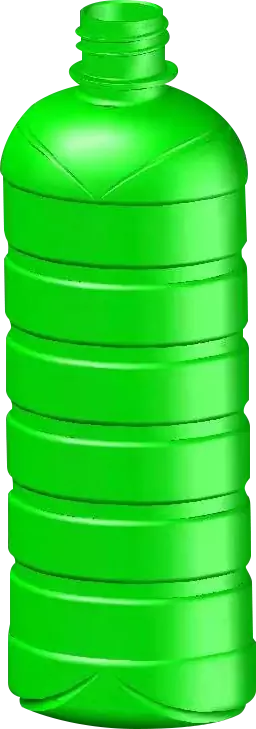

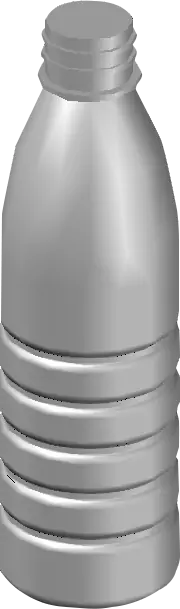

It suits round, oval, square and irregular bottle types across plastic, glass and metal materials, uses liner-backed self-adhesive labels, and is multi-purpose with strong adaptability.
Models: UHL-1212 (12,000 bottles per hour), UHL-1516 (15,000 bottles per hour) and UHL-1820 (18,000 bottles per hour); choose more stations for higher capacity.
The machine delivers high speed and high accuracy to meet different customer needs. It is compact and easy to operate, adapts readily to bottle type changes, and fully automatic high-speed labeling replaces manual work.
It suits self-adhesive label application in the washing, beverage, mineral water, food and pharmaceutical industries, especially production scenarios with diverse bottle types that need one machine for multiple uses.
Pricing is quoted per configuration, starting at ~USD 50,000 and varying with the level of automation and capacity configuration. Share your bottle type and capacity requirements, and U-Packer will provide a specific proposal and quotation.
