The rotary OPP hot melt glue single-station labeling machine is a fully automatic labeling machine for small and medium capacity, applicable to round and square bottles made of plastic, metal and glass, used in the washing, beverage, mineral water and food industries. The UHL-0101 single-station design delivers an output of 1,200 bottles per hour with a labeling accuracy of ±1mm; hot melt glue is applied only to the two ends of the label, no heat shrink tunnel is needed, and it replaces manual labeling.
- Applicable to labeling all kinds of containers with wrap-round labels like OPP film, pearl film, composite film and widely applied to the industries of detergents, beverages, mineral or purified water, foods etc.
- Fully automatic high speed labeling process, replacing the manual labeling and enhancing the productivity and helping users to strengthen the competitiveness of their products.
- Adopting environment-friendly materials is the packing industry trend, the labeling machine is specially used for this kind of materials like OPP film labels, so it can help to save 30% or above packing cost.
- Combined with advanced gluing technology and features of hot melt glue, the labeling machine only sprays glue at both ends of label and attach the label perfectly, this technology can minimize the consumption of glue and save production cost.
- As the applied label is non-shrinkable material, the printed patterns on the label won’t be deformed, staying the packing decoration.
- The labeling machine is applied for non-shrinkable labels, so no shrinking facility is required, saving a lot of energy.
| UHL-0101 | Single station,production capacity 1200 bottles/hour |
| Power Requirement | three-phase 380V 50Hz 8000W |
| Speed regulation | stepless speed regulation |
| Maximum bid speed | 150m/min |
| Labeling accuracy | ±1mm |
| Maximum width of tag | 130mm |
| Maximum tag length | 600mm |
| Maximum outside diameter of label roll | 600mm |
| Label roll core diameter | 152mm |
| Labeling Gel | Hot Melt adhesive, just in the label at both ends of the glue |
| Gluing Temperature | 120–160 °C |
| Labeling product type | Suitable for low-speed plastic, metal and glass round and square bottles |
| Label type | OPP Film Label, paper-plastic Composite Label, paper label and so on |
| Machine Weight | 1500kg |
The above parameters are for reference only and are subject to change in kind.

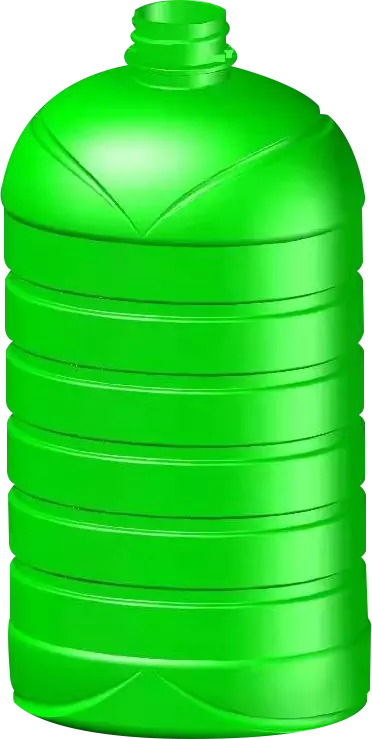

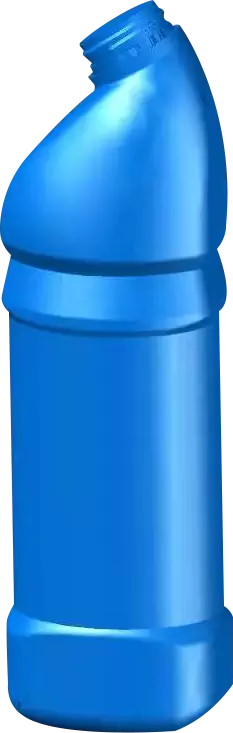

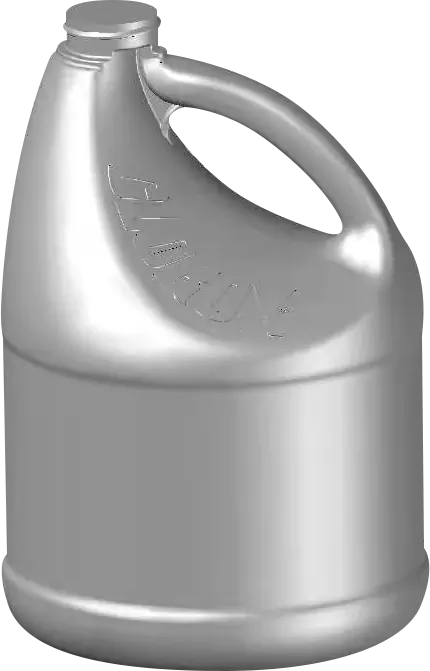

It suits round and square bottles made of plastic, metal and glass, and performs hot melt glue labeling with roll-fed materials such as OPP film, pearl film and paper-plastic composite labels.
The specification sheet model UHL-0101 is a single-station machine with an output of 1,200 bottles per hour. Its compact structure suits small and medium capacity needs or early-stage automated labeling upgrades.
The single-station rotary design is compact, and fully automatic labeling replaces manual work. Labeling accuracy is ±1mm, hot melt glue is applied only to the two ends of the label, and the heat shrink tunnel and other high-energy processes are eliminated, making it more energy-efficient.
It suits small and medium volume lines in the washing, beverage, mineral water and food industries, especially for factories that want to replace inefficient manual labeling with automated equipment.
Pricing is quoted per configuration, starting at ~USD 50,000 and varying with the level of automation and capacity configuration. Share your bottle type and capacity requirements, and U-Packer will provide a specific proposal and quotation.
